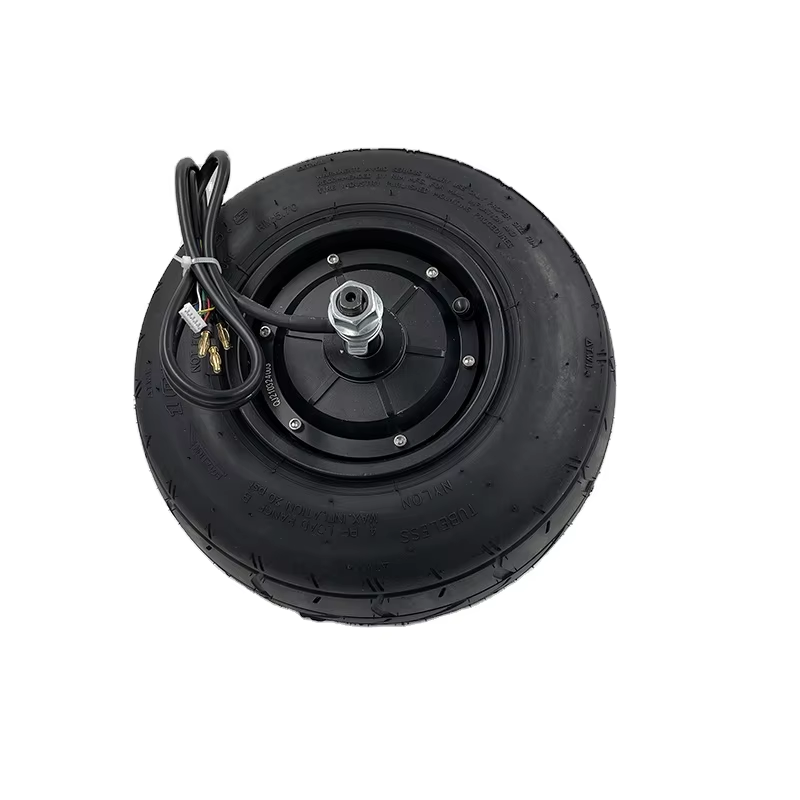

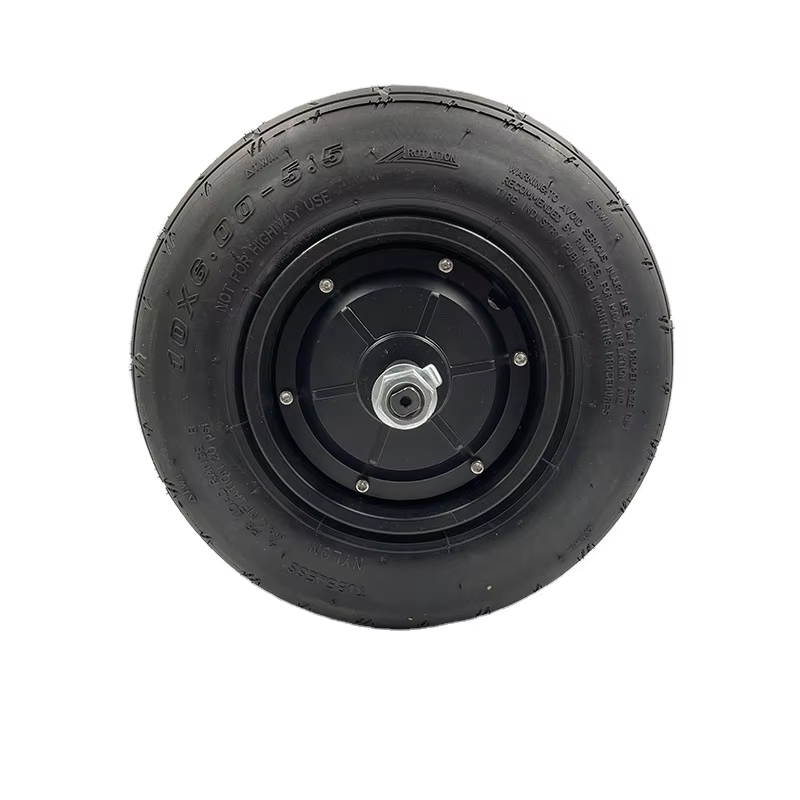

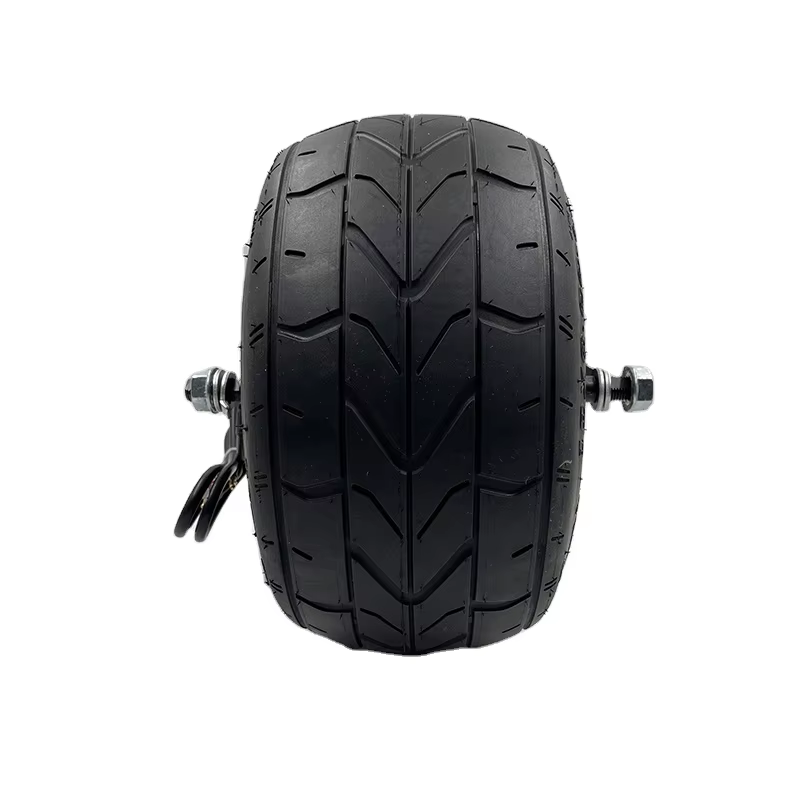

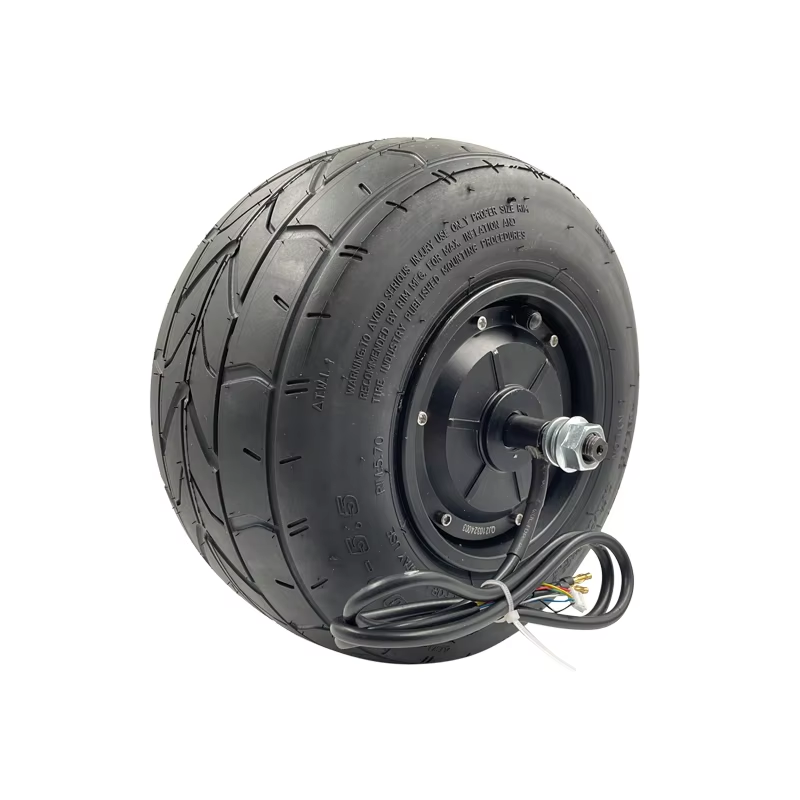

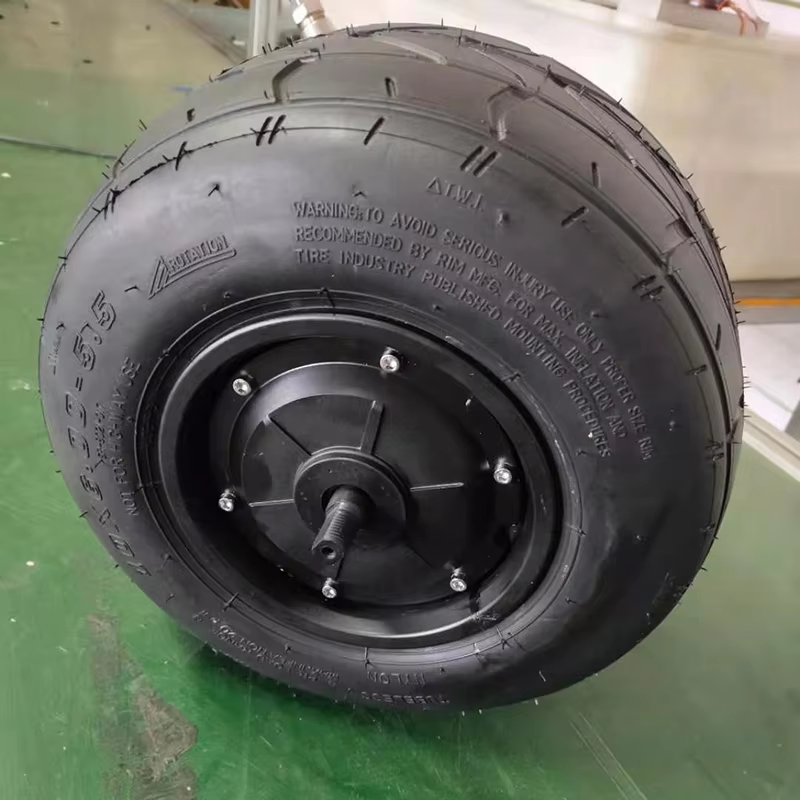

10inch E-Scooter In-Wheel Hub Motor 250-800W

10inch 500W Hub Motor specially designed for electric scooters, speed can be
customized from 25-45KMPH.Motor Specification:
1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Double axle ( can customize for single shaft )
3. Rated Power: 500W ( 250-800W can be customized)
4. Max Power: 1050W ( Peak 1200W )
5. Rated Voltage: 48V(48V/60V Can be optional)
6. Speed: 45km/h (30-55km/h can be customized)
7. Max No-load RPM: 500RPM
8. Max Torque: 55N.M
9. Max Efficiency: 86%
10. Continious current:12A
11. Max current:35A
12. Brake type: Disc brake
13. Winding Core material: IRON
14. Cross Section of Phase wire: 3 mm2
15. Hall sensor phasing angle: 120 degree
16. Temperature Sensor: Optional
17. Max. Working Temperature: 70 degree, Peak 120 degree
18. Waterproof Grade: IP54
19. Color: Black
20. N.W./ G..W. : 10kgs / 11kgs
21. Package Size: 34*34*33CM
